Référence produit : R11N02B00C

Het gaat allemaal om de buiging

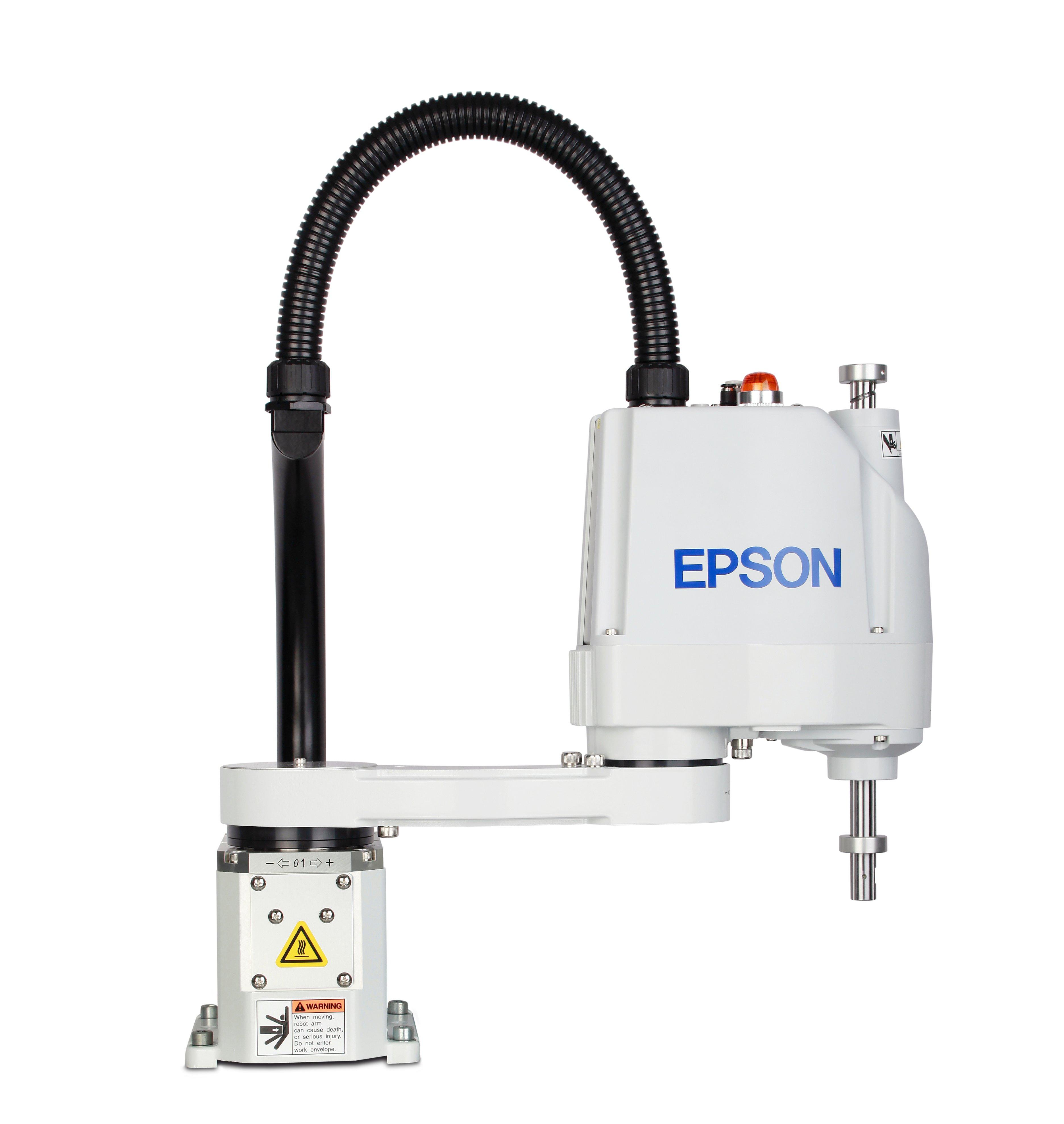

  • Compacte, nauwkeurige SCARA-robot Ontworpen voor exacte precisie op hele kleine werkplekken
  • Uitgebreide configuratiemogelijkheden Beschikbaar in verscheidene armlengtes en montageopties
  • Korte cyclustijden Een korte cyclustijd kan slechts 0,41 seconden zijn, zelfs bij lang gebruik
  • Volledig geïntegreerd Complete Epson-oplossing inclusief robot, controller en software
  • Veelzijdig en flexibel Een ideale oplossing voor allerlei toepassingen, van de auto-industrie tot farmaceutica

Quel est le contenu de la boîte ?

Epson SCARA G3-351S-R whats in the box
  1. 2 sets steunen voor de robotbesturing (RC180)
  2. Back-up cd t.b.v. robotbesturing (RC180)
  3. Aansluiting voor standaard I/O
  4. Noodstop-connector
  5. Epson RC + programma-cd inclusief simulatiesoftware
  6. Epson robot en besturing
  7. Vet voor de golf (50 g)
  8. Installatie / veiligheidsinstructies
  9. Muis en toetsenbord (voor RC620)
  10. Power- en signaalkabel (3 m)
  11. Set of connectors for user wiring
  12. TP/OP bypass plug (installed before shipment)
  13. USB programmeerkabel (voor RC180)

Découvrir d’autres produits de la gamme

  • Compacte SCARA-robot
  • Korte cyclustijden
  • Volledig geïntegreerde oplossing
R11N00W018
  • Robot SCARA compact
  • Temps de cycle courts
  • Solution totalement intégrée
R11N00W011
  • Robot SCARA compact
  • Temps de cycle courts
  • Solution totalement intégrée
R11N00W00Q
  • Compact SCARA robot
  • Short cycle times
  • Fully integrated solution
R11N02B00C
  • Compact SCARA robot
  • Short cycle times
  • Fully integrated solution
R11N02B004
  • Compact SCARA robot
  • Short cycle times
  • Fully integrated solution
R11N02B005
  • Compact SCARA robot
  • Short cycle times
  • Fully integrated solution
R11N02B00D
  • Compact SCARA robot
  • Short cycle times
  • Fully integrated solution
R11N02B002
  • Compact SCARA robot
  • Short cycle times
  • Fully integrated solution
R11N02B00H
  • Compact SCARA robot
  • Short cycle times
  • Fully integrated solution
R11N02B00E
  • Compact SCARA robot
  • Short cycle times
  • Fully integrated solution
R11N02B006
  • Compact SCARA robot
  • Short cycle times
  • Fully integrated solution
R11N02B00A
  • Compact SCARA robot
  • Short cycle times
  • Fully integrated solution
R11N02B009
  • Compact SCARA robot
  • Short cycle times
  • Fully integrated solution
R11N02B00G
  • Compact SCARA robot
  • Short cycle times
  • Fully integrated solution
R11N02B008
  • Compact SCARA robot
  • Short cycle times
  • Fully integrated solution
R11N02B00F
  • Compact SCARA robot
  • Short cycle times
  • Fully integrated solution
R11N02B00N
  • Compact SCARA robot
  • Short cycle times
  • Fully integrated solution
R11N02B00L
  • Compact SCARA robot
  • Short cycle times
  • Fully integrated solution
R11N02B00M
  • Compact SCARA robot
  • Short cycle times
  • Fully integrated solution
R11N02B00K
  • Compact SCARA robot
  • Short cycle times
  • Fully integrated solution
R11N02B00J

Caractéristiques techniques

Les fonctions et caractéristiques techniques du produit sont soumises à modification sans préavis

Algemeen

Bouwwijze
SCARA met 4 assen
Special design
Righty arm optimized
Laadvermogen
nom. 1 kg, max. 3 kg
Horizontaal bereik
350 mm
Reikwijdte verticaal
As 3: 150 mm
Reikwijdte oriëntatie
J4: +/- 360 °
Herhaalnauwkeurigheid horizontaal
+/- 0,01 mm
Herhaalnauwkeurigheid verticaal
J3: +/- 0,01 mm
Herhaalnauwkeurigheid oriëntatie
J4: +/- 0,005 °
Max. werkbereik
As 3: +/- 150 °, As 4: +/- 360 °
Toelaatbaar traagheidsmoment
nom. 0,005 kg*m², max. 0,05 kg*m²
Gebruikersbekabeling elektrisch
1x D-Sub 15 pin
Gebruikersbekabeling pneumatisch
3x (1x4mm Ø & 2x6mm Ø)
Z-as
Ø Buiten: 11 mm
Indrukkracht
150 N
Gewicht
14 kg
Besturing
EPSON RC180
Bevestigingsoptie
Voetstuk
IP-beschermingsklasse
IP20
Power- en signaalkabel
3m, 5m, 10m, 20m
Certificaten
Machinerichtlijn: EN 60204-1, EMC-richtlijn: EN 55011, EMC-richtlijn: EN 60950, RoHS-richtlijn: 2002/92/EG, ANSI/RIA: R15.06-1999
